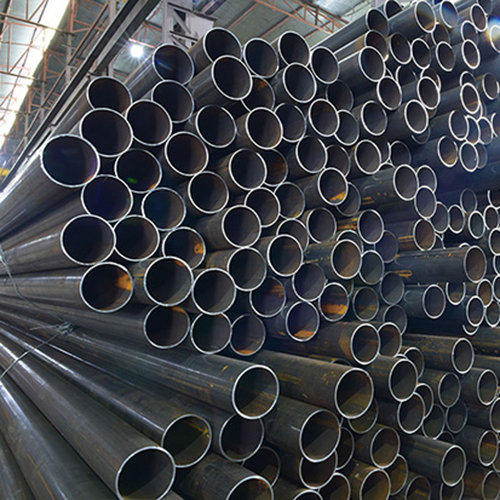

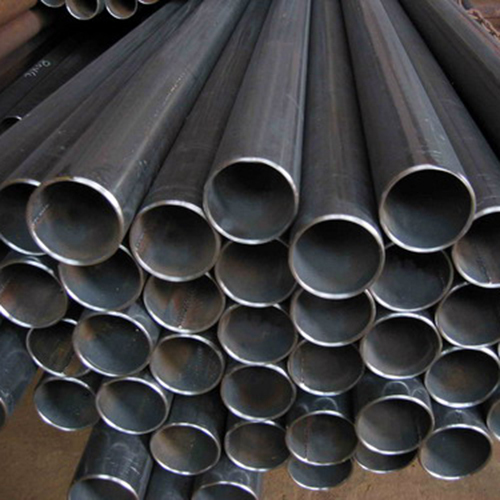

MS ERW Pipes

• Application
• other, Structural, Industrial, Construction, Plumbing

• Bend Radius
• As per pipe diameter

• Coating Type
• None / Black Painted

• Color
• Black

• Connection
• Other, Plain End / Beveled End

• Connection Type
• Welded / Socketed

• Diameter
• 21.3 mm to 406 mm

• Flexibility
• Rigid

• Length
• 6 m / 12 m or Custom Lengths

• Material
• Mild Steel

• Material Grade
• IS 1239 YST 210 / YST 240 / YST 310

• Outer Diameter
• 21.3 mm to 406 mm

• Product Type
• Other, MS ERW Black Steel Pipes

• Rated Pressure
• As per standard specification

• Section Shape
• Round

• Shape
• Round

• Standard
• Other, IS 1239 / IS 3589 / ASTM A53 / API 5L

• Surface Treatment
• Other, Black (Bare) / Uncoated

• Temperature Range
• Up to 400C

• Tensile Strength
• 330 - 410 MPa

• Thickness
• 1.8 mm to 12 mm

• Thread Type
• Plain (Threading on request)

• Tolerance
• 0.1 mm

• Usage
• Water, Gas, Air, Oil & Steam Conveyance

• Yield Strength
• 210 - 310 MPa

• Application
• other, Boiler, Heat Exchanger, Mechanical, Structural, Oil & Gas, Automobile

• Bend Radius
• 3D to 5D (as per requirement)

• Coating Type
• PE Coating, Galvanized, Painted

• Color
• Metallic Grey, Black

• Connection
• Other, Welded, Seamless, Screwed

• Connection Type
• Threaded, Plain End, Beveled End

• Diameter
• 6 mm to 711 mm

• Flexibility
• Rigid

• Length
• Up to 12 meters (customized as required)

• Material
• Other , Alloy Steel

• Material Grade
• ASTM A335 P1, P5, P9, P11, P22, P91 etc.

• Outer Diameter
• 6 mm to 711 mm

• Product Type
• Other, Alloy Steel Pipes Tubes

• Rated Pressure
• Up to 5800 psi

• Sealing Type
• Metal to Metal, Gasket Sealed

• Section Shape
• Other, Round, Hollow, Square

• Shape
• Other, Round, Square, Rectangular

• Standard
• Other, ASTM, ASME, DIN, EN, JIS

• Surface Treatment
• Other, Polished, Pickled, Annealed, Galvanized

• Temperature Range
• -20C to 550C

• Tensile Strength
• 415-860 MPa

• Thickness
• 1 mm to 50 mm

• Thread Type
• NPT, BSPT, BSP

• Tolerance
• 0.01 mm

• Usage
• Industrial, Construction, Chemical, Petrochemical, Power Plant

• Yield Strength
• 205-520 MPa

• Application
• other, Structural purpose

• Color
• Black

• Length
• 6 meter

• Material
• Mild Steel

• Material Grade
• IS 2062 / ASTM A500

• Outer Diameter
• 25 mm - 300 mm

• Product Type
• Other, Structural Steel Pipe

• Section Shape
• Round

• Shape
• Round

• Standard
• Other, IS 1161 / IS 1239

• Surface Treatment
• Other, Hot Rolled

• Thickness
• 3 mm - 12 mm

• Usage
• Construction, Infrastructure, Fabrication

• Application
• other, Building Structures, Railings, Frames, Fabrication

• Bend Radius
• Standard: 2x Outer Diameter, or as specified

• Coating Type
• Uncoated

• Color
• Silver / Metallic

• Connection
• Other, Welded / Seamless

• Connection Type
• Butt Weld / Socket Weld

• Diameter
• Custom as per requirement

• Flexibility
• Rigid

• Length
• Up to 6 meters or custom

• Material
• Stainless Steel

• Material Grade
• 304, 316, 202, 409, 430, or as required

• Outer Diameter
• 10 mm x 20 mm to 100 mm x 200 mm

• Product Type
• Other, Rectangular Stainless Steel Pipe

• Rated Pressure
• Varies by thickness and grade

• Section Shape
• Other, Rectangle

• Shape
• Rectangular

• Standard
• Other, ASTM A554 / A312, EN10210, JIS G3466

• Surface Treatment
• Other, Polished / Pickled / Annealed

• Temperature Range
• -196C to 600C (Depending on Grade)

• Tensile Strength
• 520 MPa (min) for 304 grade

• Thickness
• 0.8 mm to 6 mm

• Tolerance
• 1% or as per standard

• Usage
• Construction, Architectural, Structural, Industrial

• Yield Strength
• 205 MPa (min) for 304 grade

• Application
• other, Domestic, Industrial, Agricultural

• Bend Radius
• As per IS 4923

• Coating Type
• Zinc coating / Black coating

• Color
• Black / Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• N/A (Square section)

• Flexibility
• Rigid

• Length
• 3 m, 6 m or Customized

• Material
• Other , Mild Steel (MS)

• Material Grade
• IS 2062, E250, E350

• Outer Diameter
• 20 mm - 150 mm

• Product Type

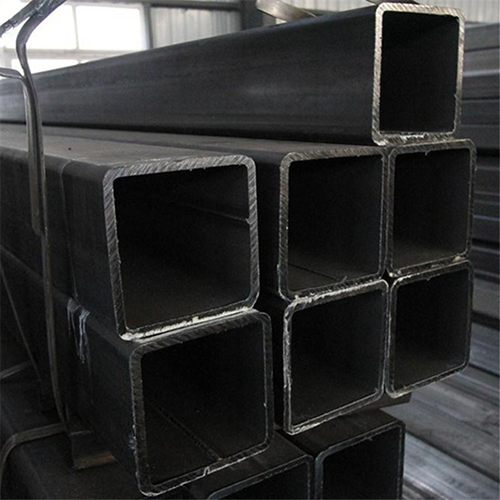

• Other, MS ERW Square Pipe

• Rated Pressure
• Depends on thickness and grade

• Section Shape
• Square

• Shape
• Square

• Standard
• Other, IS 4923 / ASTM A500

• Surface Treatment
• Other, Galvanized / Black

• Temperature Range
• Upto 350C

• Tensile Strength
• 330 MPa - 510 MPa

• Thickness
• 2 mm - 8 mm

• Thread Type
• Threadless

• Tolerance
• 0.5 mm

• Usage
• Construction, Fabrication, Structural

• Yield Strength
• 210 MPa - 250 MPa

• Application
• other, Water pipeline, Scaffolding, Structural, Engineering and Industrial

• Bend Radius
• Standard-Not intended for tight bending

• Coating Type
• Anti-corrosive Paint / GI Coating

• Color
• Black

• Connection
• Other, Welded

• Connection Type
• Welded

• Diameter
• Varies as per specification (21.3 mm - 406.4 mm)

• Flexibility
• Rigid

• Length
• 6 m / 12 m or as required

• Material
• Other , Mild Steel (MS)

• Material Grade
• IS 1239, IS 3589, ASTM A53 Grades

• Outer Diameter
• 21.3 mm - 406.4 mm

• Product Type
• Other, MS ERW Pipe

• Rated Pressure
• PN6 to PN25 (depends on diameter & grade)

• Sealing Type
• As per requirement (threaded/coupled/welded)

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, IS 1239 / IS 3589 / ASTM A53 / BS 1387

• Surface Treatment
• Other, Black Painted / Galvanized

• Temperature Range
• Up to 400C

• Tensile Strength
• Not less than 330 MPa

• Thickness
• 2 mm - 10 mm

• Thread Type
• Plain / Bevel Ended / Threaded with Couplings

• Tolerance
• 0.5 mm

• Usage
• Industrial, Structural, Plumbing, Water Supply

• Yield Strength
• Not less than 210 MPa
